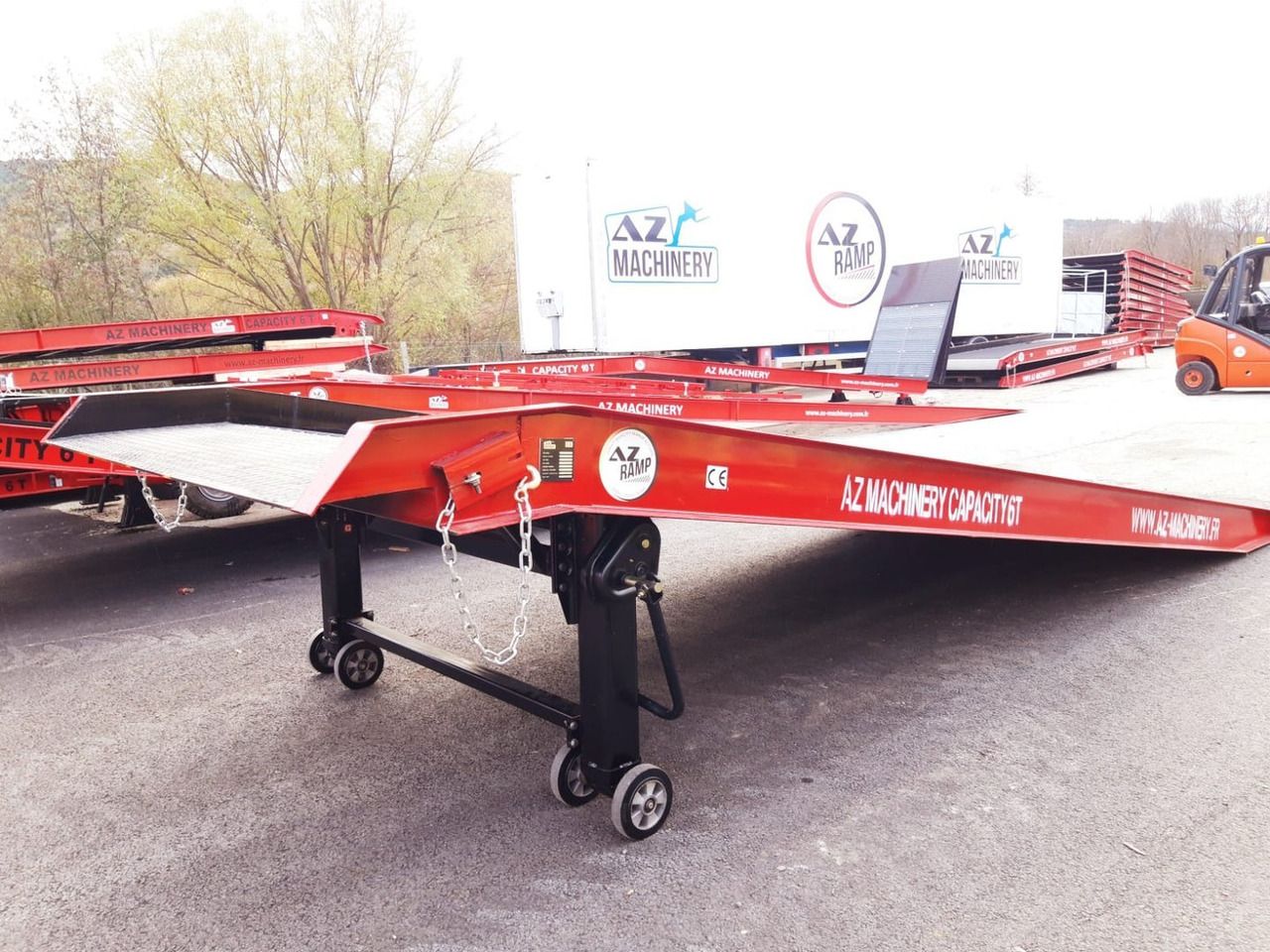

Industrial Mobile Loading Ramp AZ RAMP PRIME XS-6 - The professional solution for all your logistics needs.

Simplify your loading and unloading operations with the AZ RAMP PRIME XS-6 industrial mobile ramp.

Brand: AZ RAMP - Type: PRIME XS-6 Dimensions:*** Dynamic Capacity: 6,000 kg

• Static Capacity: 8,000 kg
• Total Length: 5.90 m
• Overall Width: 2.25 m, Inner Width: 2.10 m
• Lip Penetration: 25 cm

Hydraulically adjustable height: Minimum height: 0.95 m - Maximum height: 1.45 m

Non-slip checkered surface, hot-dip galvanized, 2 tie-down chains, double retractable and removable quick hitch, ramp mounted on double Vulkollan rollers, 2 hydraulic support legs adjustable in height by 2-speed hand crank, 120 mm high lateral safety wheel stops.

Optional:*** Side fork sleeves for safe loading and unloading of materials: 750€HT

• Pair of 1100 mm side railings for safe pedestrian passage on the ramp: 500€HT
• Electric legs for electrically adjusting the ramp height: 3,500€HT
• Complete hot-dip galvanization of the entire structure guaranteeing no corrosion for 30 years: 1,500€HT

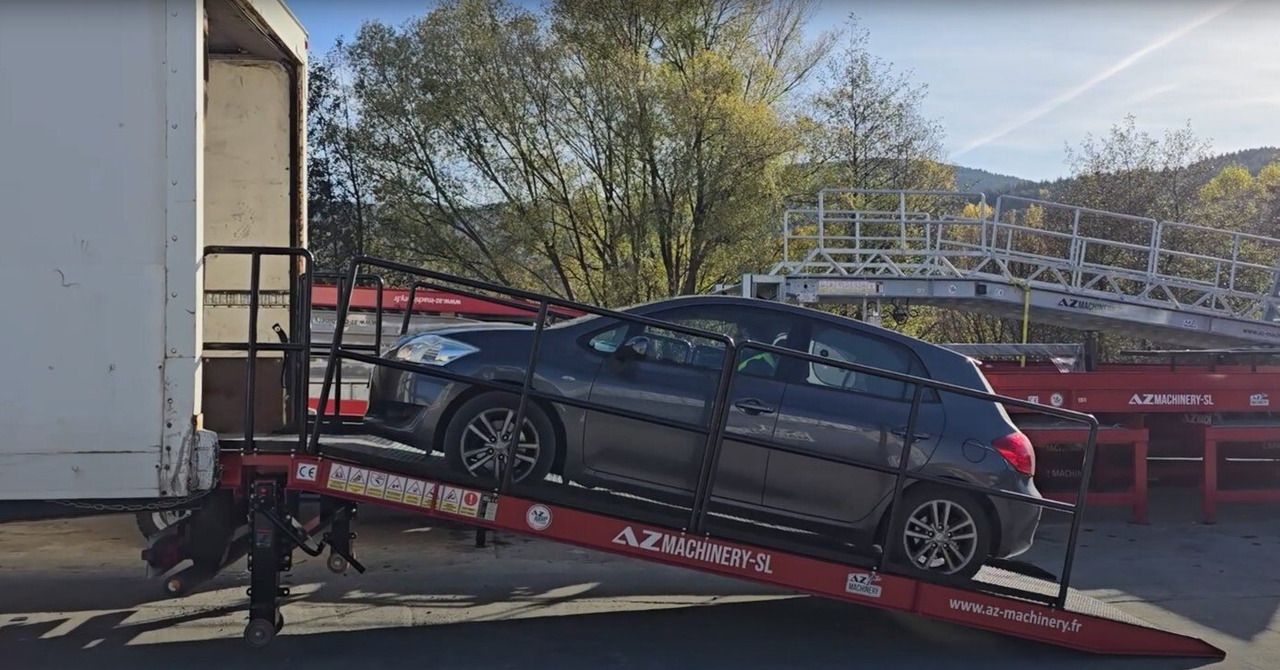

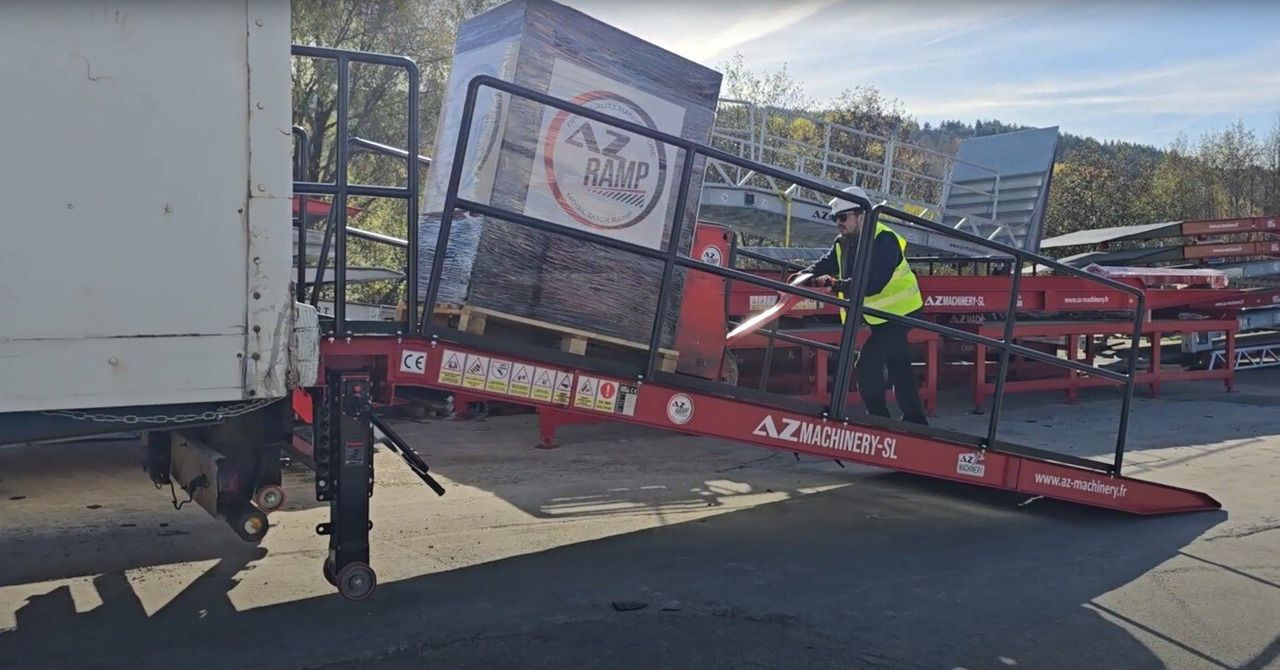

Applications: Specifically designed for industrial use, this mobile ramp is perfect for use in confined spaces. Its use on surfaces such as asphalt or macadam will be very effective. Loading / Unloading of platform or tautliner trucks, the AZ RAMP - PRIME XS range is made of heavy-duty, hot-dip galvanized steel. Its full access platform will allow you easy access with all types of forklifts, storage equipment such as pallet stackers, electric pallet trucks, manual pallet trucks, light vehicles and utility vehicles, rolls, earthmoving equipment, mini-excavators, crawler loaders, etc.

Designed for intensive use in the most demanding industrial environments, this robust and versatile ramp offers you a safe and efficient solution.

Key features:*** High capacity: Dynamic load of 6 tonnes and static load of 8 tonnes for a wide variety of applications.

• Compact dimensions: Fits perfectly into confined spaces thanks to its total length of 5.90 m and useful width of 2.10 m.
• Precise adjustment: Height adjustable from 0.95 m to 1.45 m to suit all types of vehicles.
• Reinforced safety: Non-slip surface, tie-down chains, wheel stops and railing options for safe use.
• Exceptional durability: Hot-dip galvanized steel structure for maximum corrosion resistance.
• Versatility: Ideal for loading and unloading trucks, pallets, earthmoving equipment and much more.
• Typical applications:
• Industry: Factories, warehouses, distribution centers
• Construction: Construction sites
• Logistics: Logistics platforms, carriers
• Options available (on request):
• Side fork sleeves for safe handling of materials.
• Side railings for safe pedestrian passage.
• Electric legs for automated leveling.
• Complete galvanization for a longer lifespan.

Why choose AZ RAMP PRIME XS-6?*** Robustness and reliability: Manufactured with high quality materials for intensive use.

• Ease of use: Simple and quick adjustment thanks to the hydraulic hand crank.
• Optimal safety: Designed to protect operators and equipment.
