Wiertnica horyzontalna Vermeer D36x50II

Vermeer Navigator D36x50 Series II

Completely inspected and tested by authorized Vermeer technicians. We inspect, repair and test all relevant systems, such

as the engine, the electrical system, the hydraulic system, all mechanics and the overall functions and details, following the

official Vermeer guidelines while using only original Vermeer parts. All used equipment is delivered including detailed

inspection document. We are confident in the quality that we deliver to our customers.

Anything in need of repair will be taken care of at no additional charge!

- Year of built: 2015

- Engine hours: 5685

- Working hours: 3319

Dimensions:

- LxWxH: 790x229x226 cm

- Weight: 11 ton

Operational:

- Max torque6770

- Max 227 rpm

- Pull force: 16,3 ton

- Travel speed: 2,25 km/hr

Drillrods Vermeer FireStick on the rig:

- Length: 3.1 meter

- Pipe diameter: 2 3/8” – Firestick #650

- Minimum radius: 44 meter

- Box filled with used drill rods: 152 meter total

Standard available on the machine:

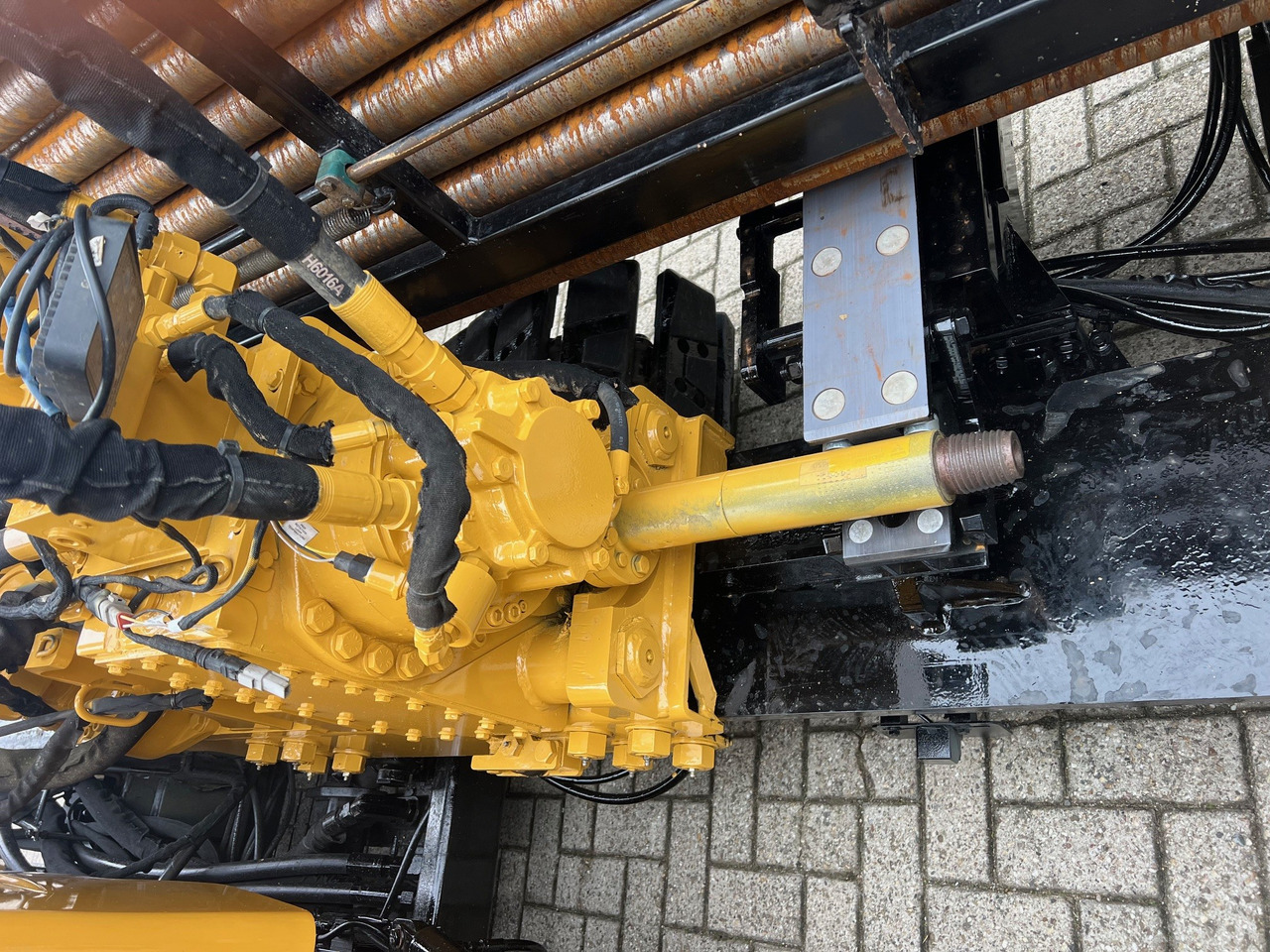

- Rack & pinion system for the rotation gearbox

- Automatic rod loading system

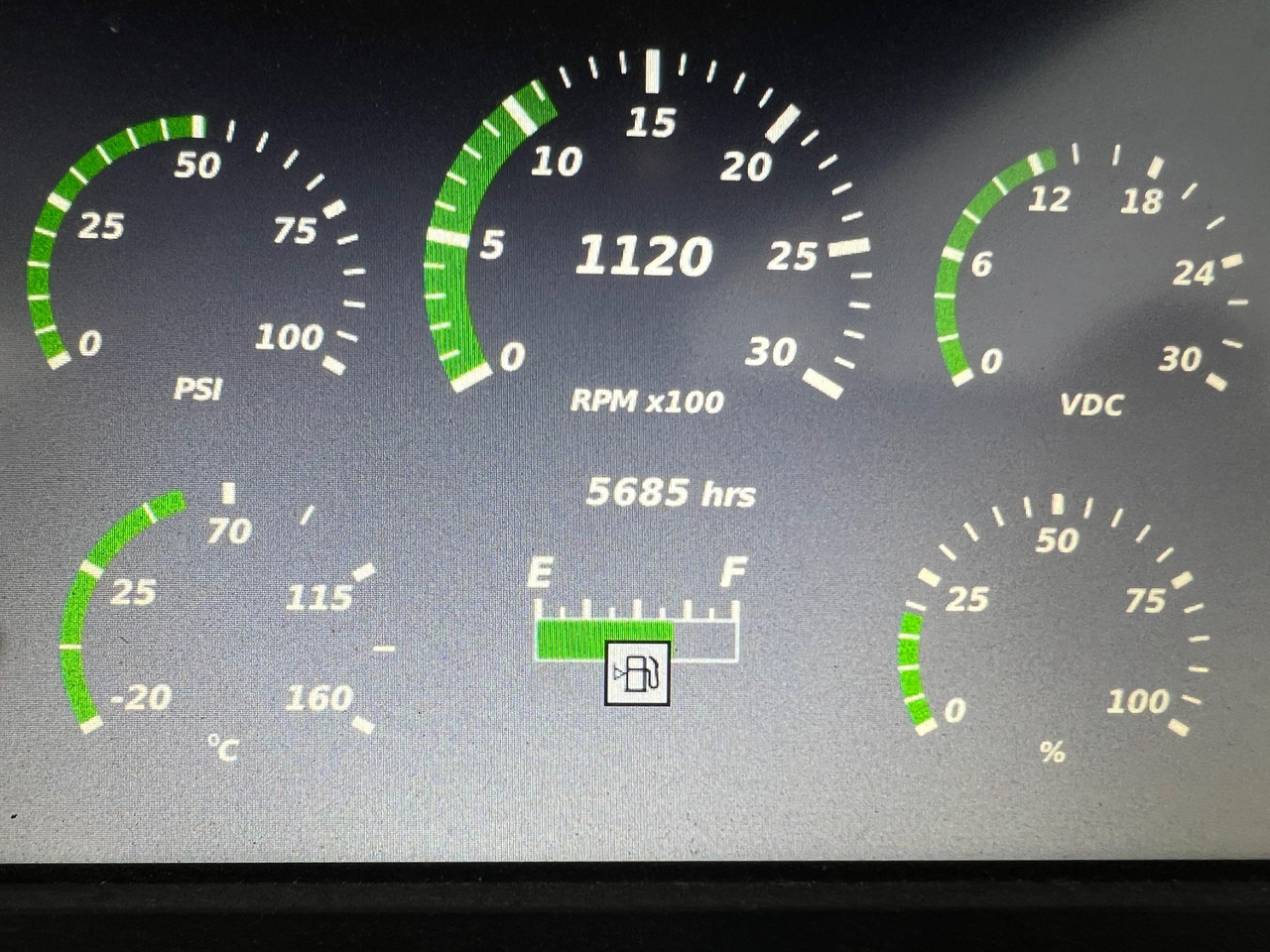

- DigiTrak Aurora touch screen

- Automatic anchoring system

- Lighting

Engine:

- Type John Deere 140 pk

- 2400 rpm

High pressure bentonite pump:

- max 265 liter per minute

- max pressure 90 bar

Miscellaneous:

- Engine oil: 11 liter

- Fuel tank: 170 liter

- Hydraulic reservoir: 227 liter
