Nowy Kruszarka udarowa FABO impact crusher

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

PDK Series Primary impact crusher is a rotor type crusher and an expert in crushing less abrasive materials with medium hardness with very high reduction and cubical ratio. Primary impact crushers can be preferred for crushing large sized stones and it lowers secondary crushing requirement in entire systems. PDK series impact crushers deliver unbeatable performances in primary, secondary and tertiary applications. The crusher consists of two parts, body opening and adjustment systems operate easily with the hydraulic power unit thus provides an advantage for easy maintenance and minimum stopping for a constantly work. We produce PDK crushers as Mobile Primary Impact Crusher and Stationary Primary Impact Crusher.

General Specifitions and Futures:

• High capacity

• High reduction ratio

• Wear surfaces are protected by solid-filler electrode welding

• Hammers and crushing plates are manufactured from high manganese steel casting

• Inner surfaces of the crusher is coated with wear resistant lining plates

• Wide intake with chain curtain due to protection from back-leaping

• Hydraulic setting system

TECHNICAL SPECIFICATIONS

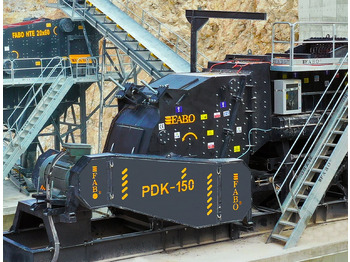

• Model: FABO PDK-150

• Type: Primary Impact Crusher

• Rotor Size: 1200 x 1500 mm

• Max Feeding: 800 mm

• Capacity: 300-600 TPH

• Motor Power: Heavy duty GAMAK,315 kW Bearings: Heavy duty SKF-FAG

• Speed: 750 rpm

• Weight: 25300 kg

• Including chassis, motor and safety guards.

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
