LAG L4BH
Opublikowane: 17d.
Opublikowane: 17d.

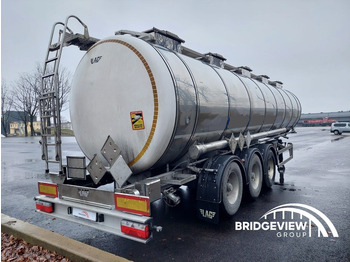

Lithuania, Malavėnų g. 3, Ginkūnai, LT-81494 Šiaulių r., LithuaniaStainless Steel Tank trailer, ADR
Vehicle type: ADR
Tank code: L4BH
Number of compartments: 1
Size compartment 1: 30000 LL
Capacity: 30000 LL
Diameter: 2.000 mm
Shell thickness: 3 mm
Tank shape: Straight cylindrical
Quality: 1.4404 (316 L)
Number of baffles: 3
Material baffles : 1.4404
Temperature: 120°C.
Testing pressure: 4,0 bar.
Working pressure: 2,6 bar.
Technical weights:
Max. technical vehicle weight: 43.000 kg
Max. technical king pin weight: 16.000 kg
Max. technical boogie weight: 27.000 kg
Weight distribution:
Permissible vehicle weight: 39.000 kg
Permissible king pin weight: 12.000 kg
Permissible boogie weight: 27.000 kg
Demountable bolted coupling plate in steel, with bolted SAE 2" kingpin.
3 fixed axles SAF INTRA DISC PLUS SB2220
Electronic brake system WABCO EBS-E, type 2S/2M
In the last spillbox, a 3” flange for a filling pipe (filling connection) with a 3’ Fort Vale valve, TW 3" coupling (F)
with blind cover, mounted on the right. Filling pipe not included.
In the last spillbox, a 3" flange for later installation of a filling pipe (filling connection), mounted on the left.
Only the blind flange is mounted.
Diameter discharge piping : 3"
Coupling: Stainless steel TW 3”
Brand bottom valve: Fort Vale Cleanflow
Diameter: 3"
Bottom valve control: Pneumatic
Material bottom valve Stainless steel
Butterfly valve: Fort Vale Unifly
Diameter butterfly valve: 3"
Valve control: manual.
